Water Level Sensor









Joule Thief

See our other Circuits.

This circuit is useful for driving LEDs with a single AAA cell.  The transformer steps up the Voltage.  The transistor turns on because the base is pulled up. However, when it turns on it produces a negative current on the base, which turns it off causing oscillations which are in the range of 50KHz.

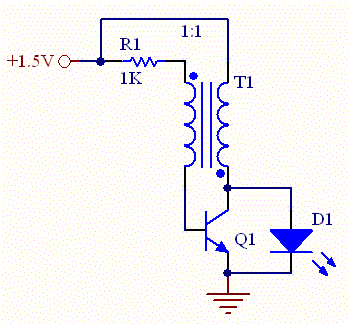

Joule Thief Schematic

Joule Thief Schematic
